Photocell Timing System for Horseback Archery Tracks
Photocell Timing System for Horseback Archery Tracks
Parameters
Product type: Photocell timing system
View full detailsThis timing device is specifically designed for horseback archery competitions to accurately and reliably measure the duration of runs, but it can also be easily and practically applied in training sessions. Thanks to its ease of use, competition organizers can effortlessly manage timing, contributing to the smooth execution of events. Wireless communication technology allows for easy installation at any point on the tracks. The device becomes a practical tool for every horseback archery competition, as it contributes to the accurate and fair assessment of each round and also enhances the experience of both competitors and spectators, thanks to its fast and precise timing.
Basic system | Extended system 1 | Extended system 2 | |
---|---|---|---|

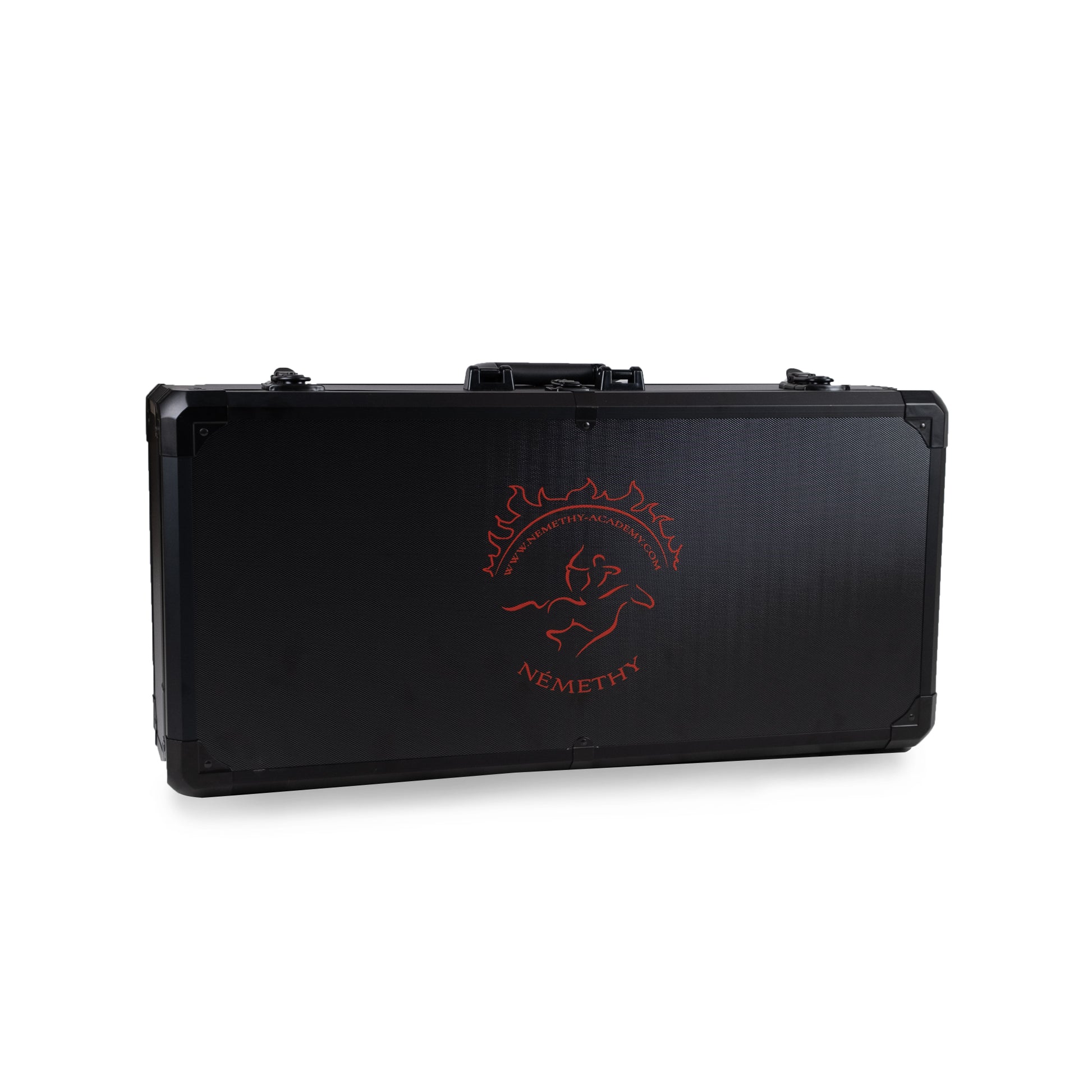

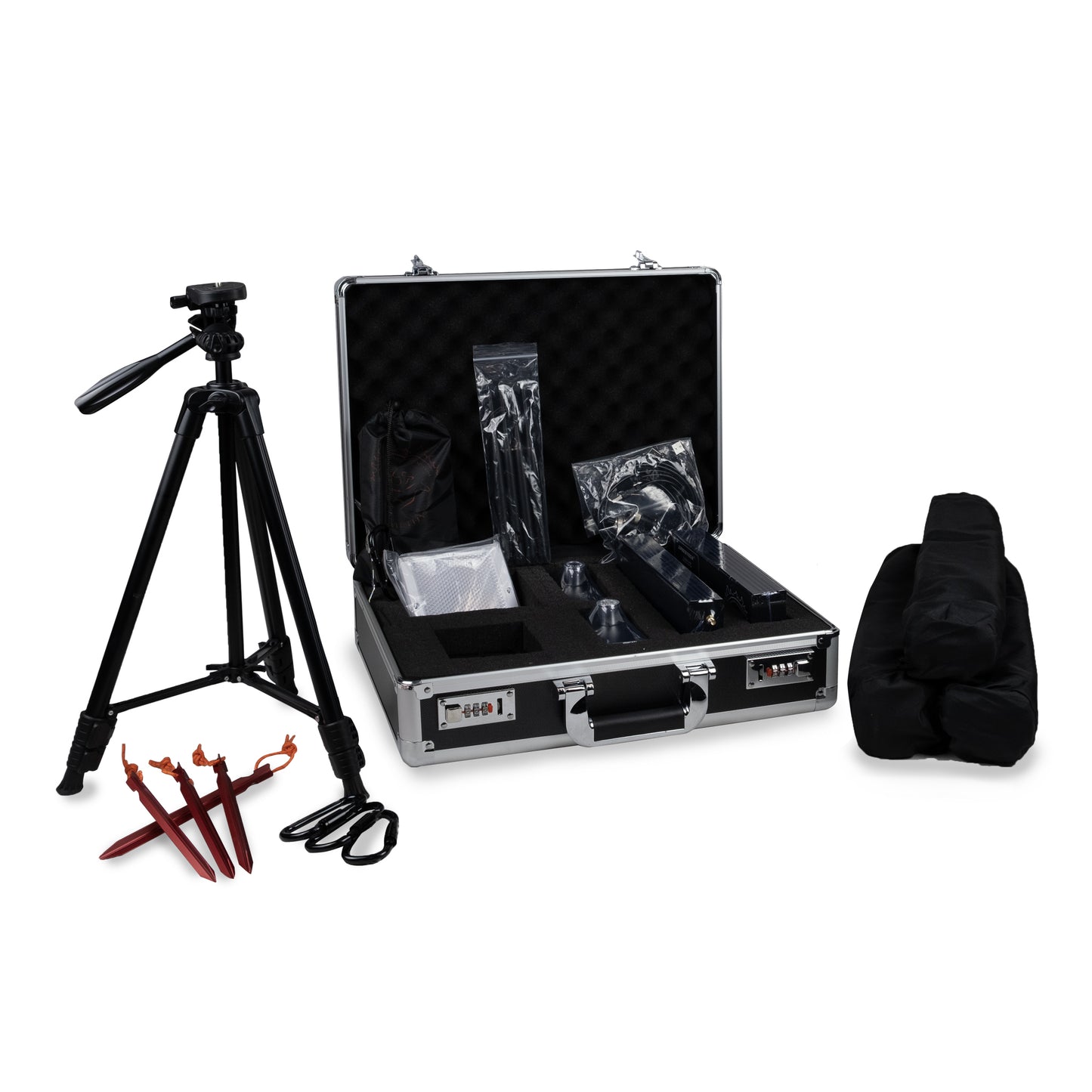

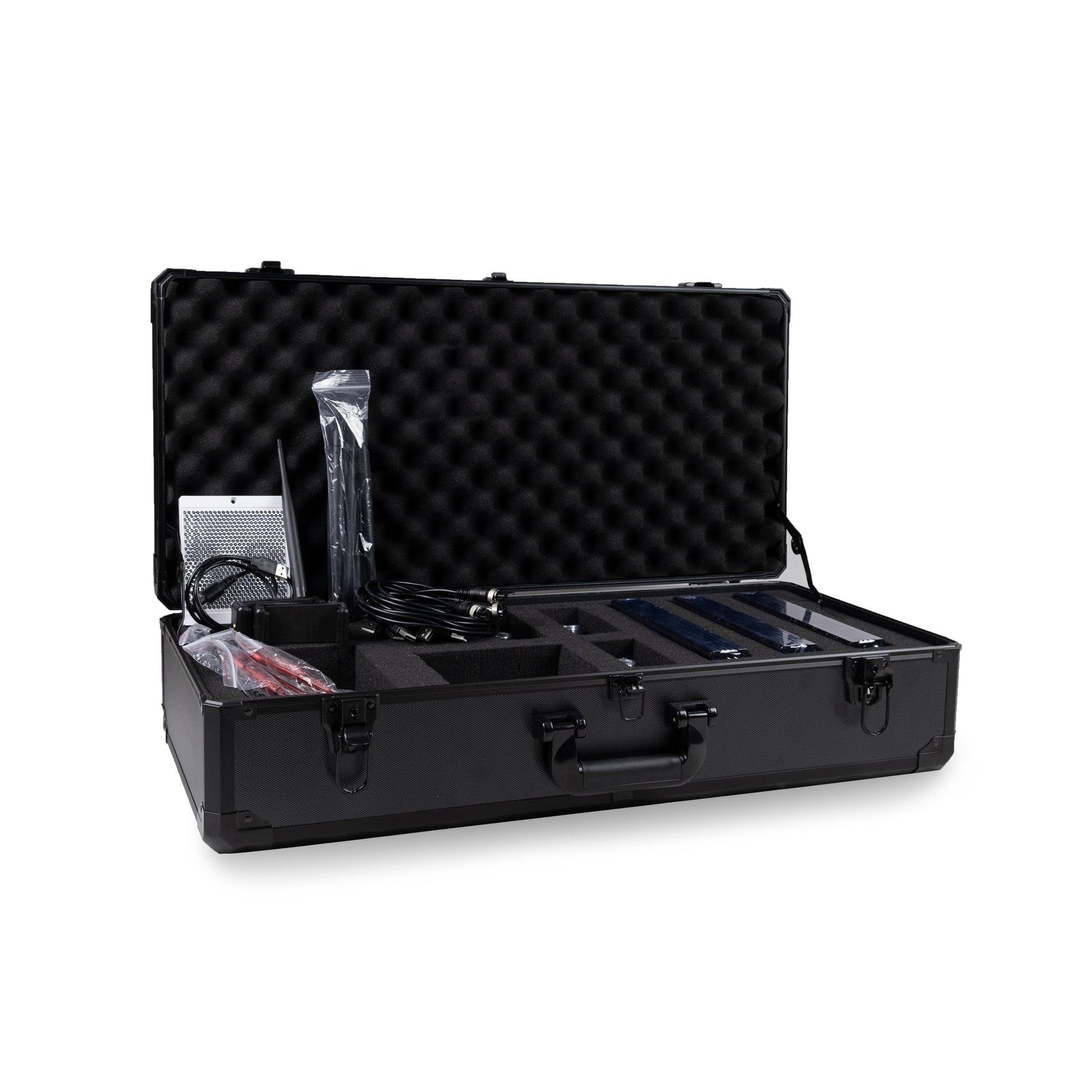

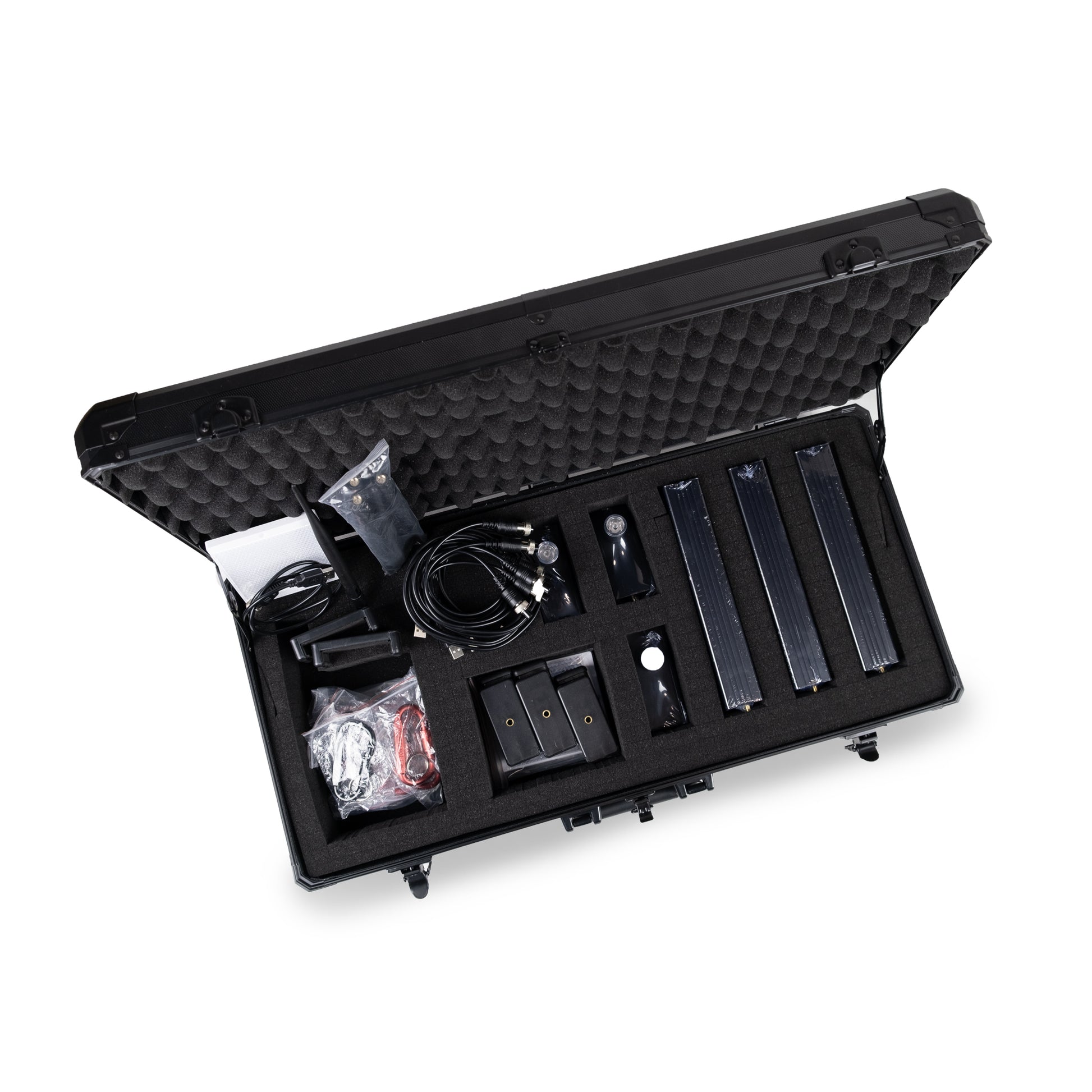

Protective lockable case: | ✓ | ✓ | ✓ |

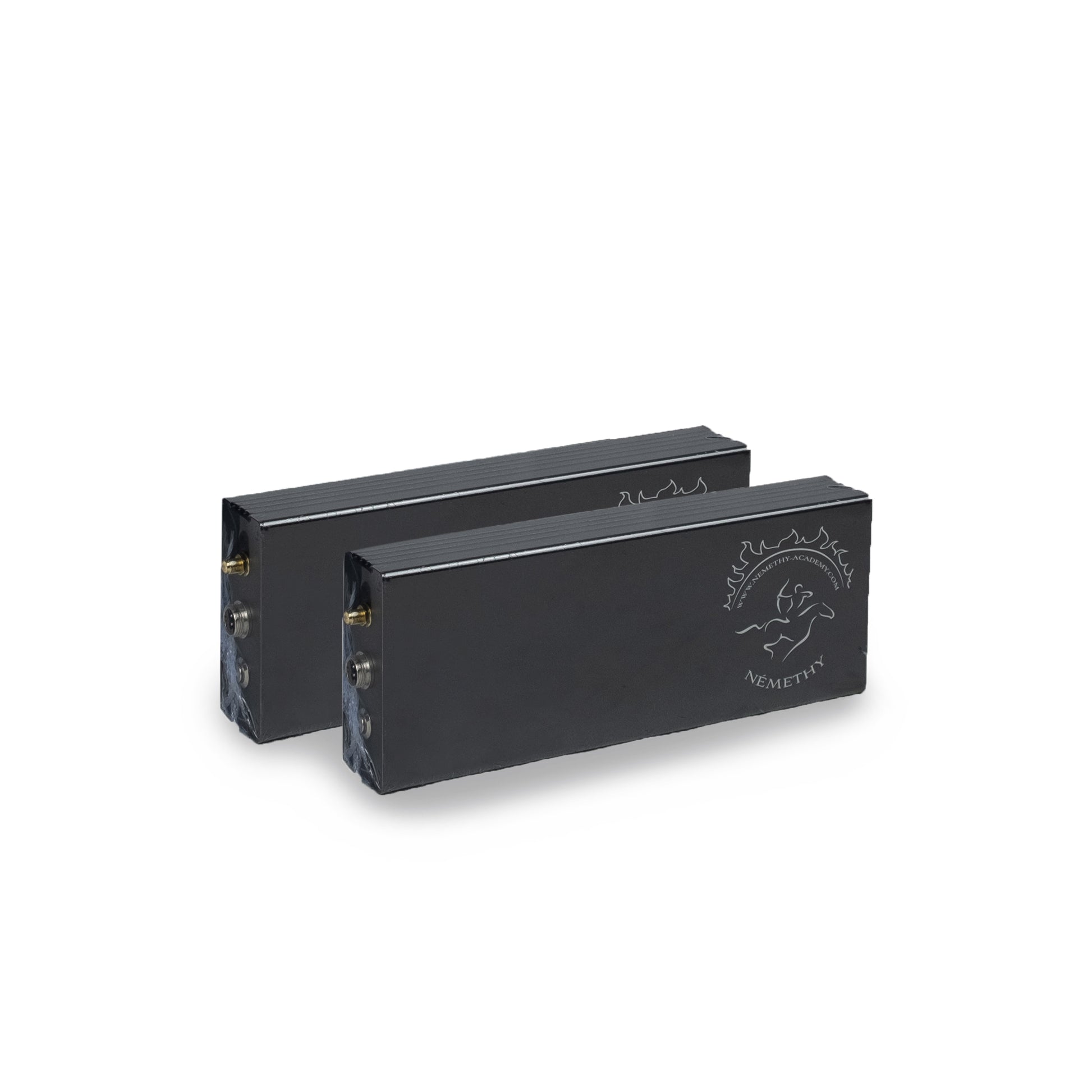

Screen | 2 pcs | 2 pcs | 3 pcs |

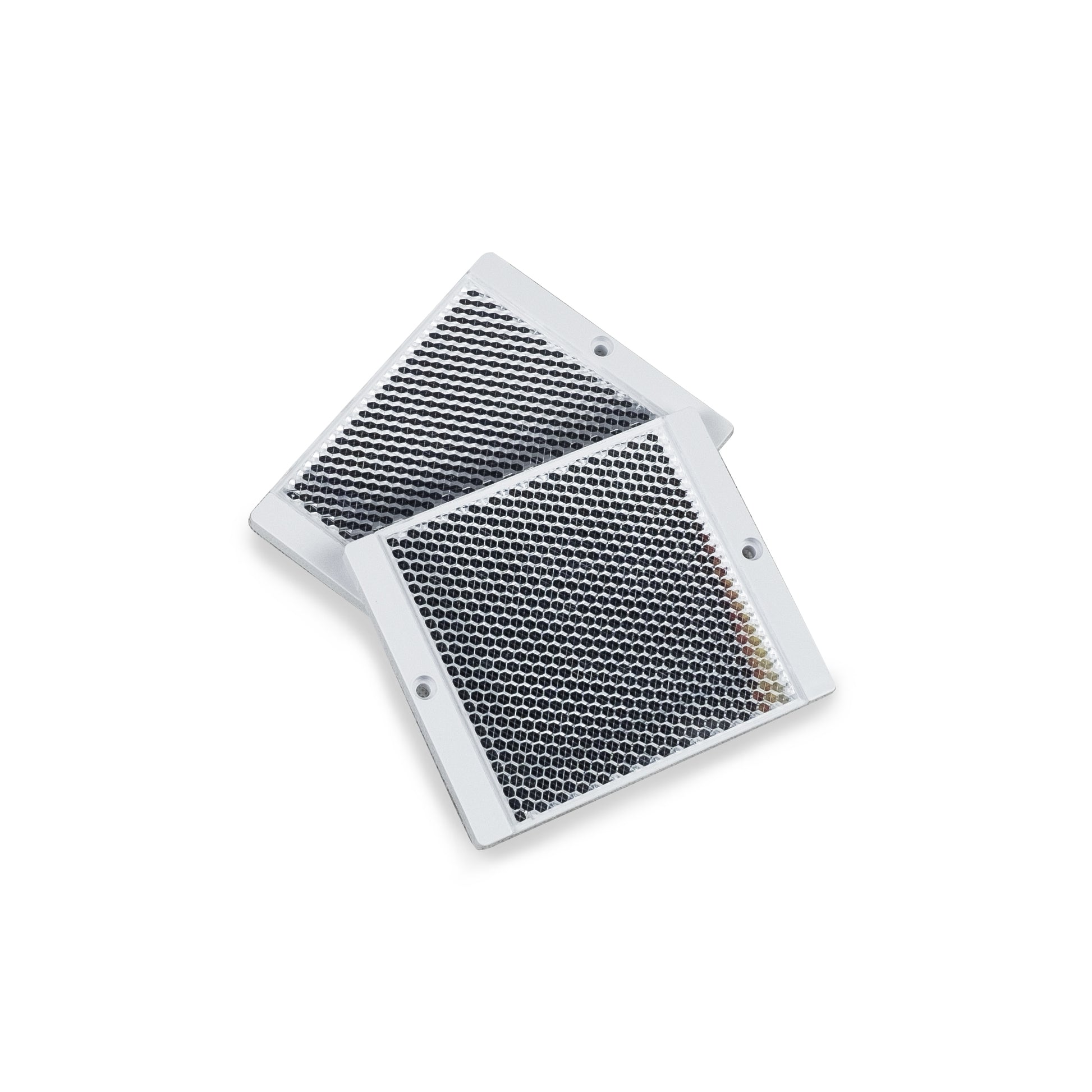

Reflector | 2 pcs | 3 pcs | 3 pcs |

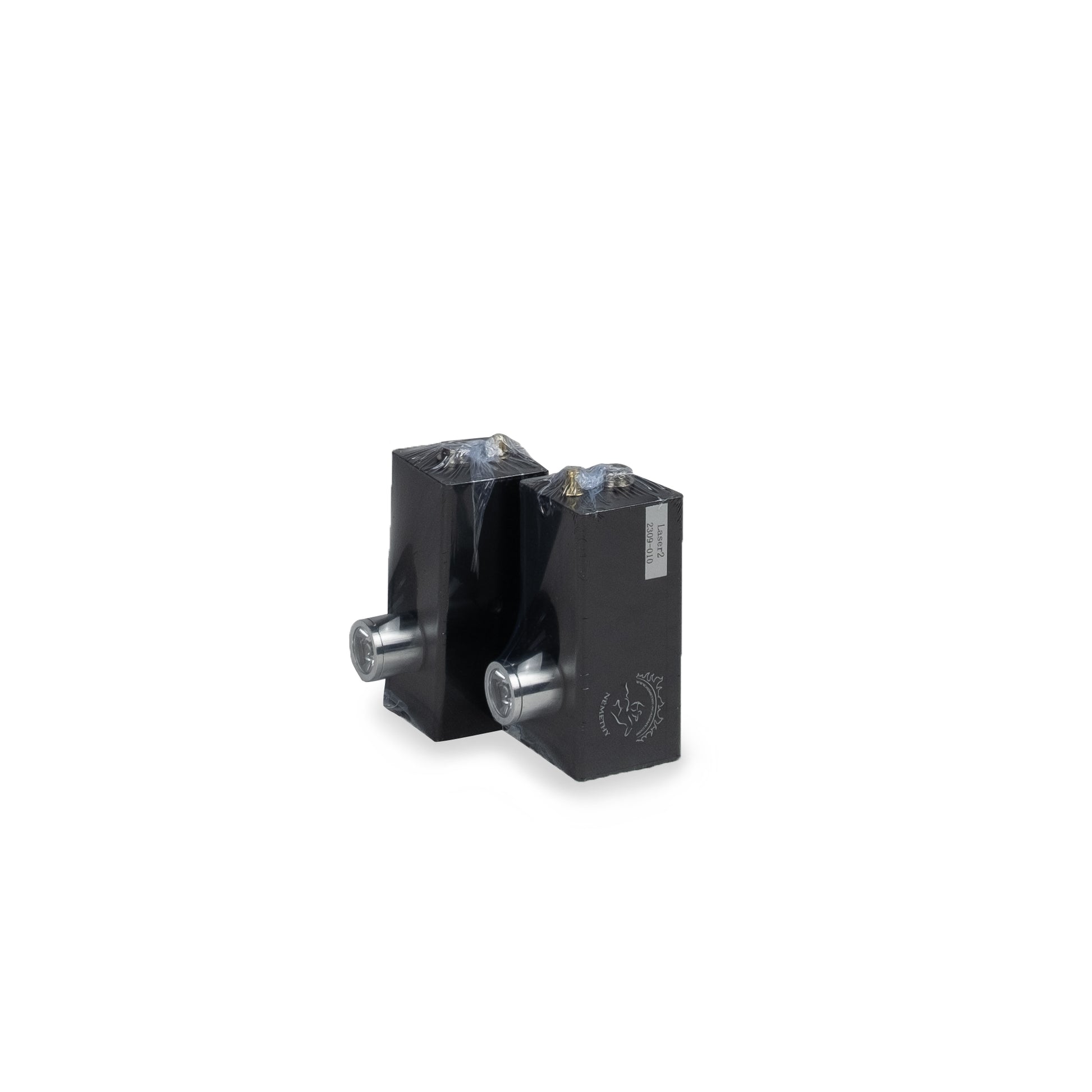

Laser system | 2 pcs | 3 pcs | 3 pcs |

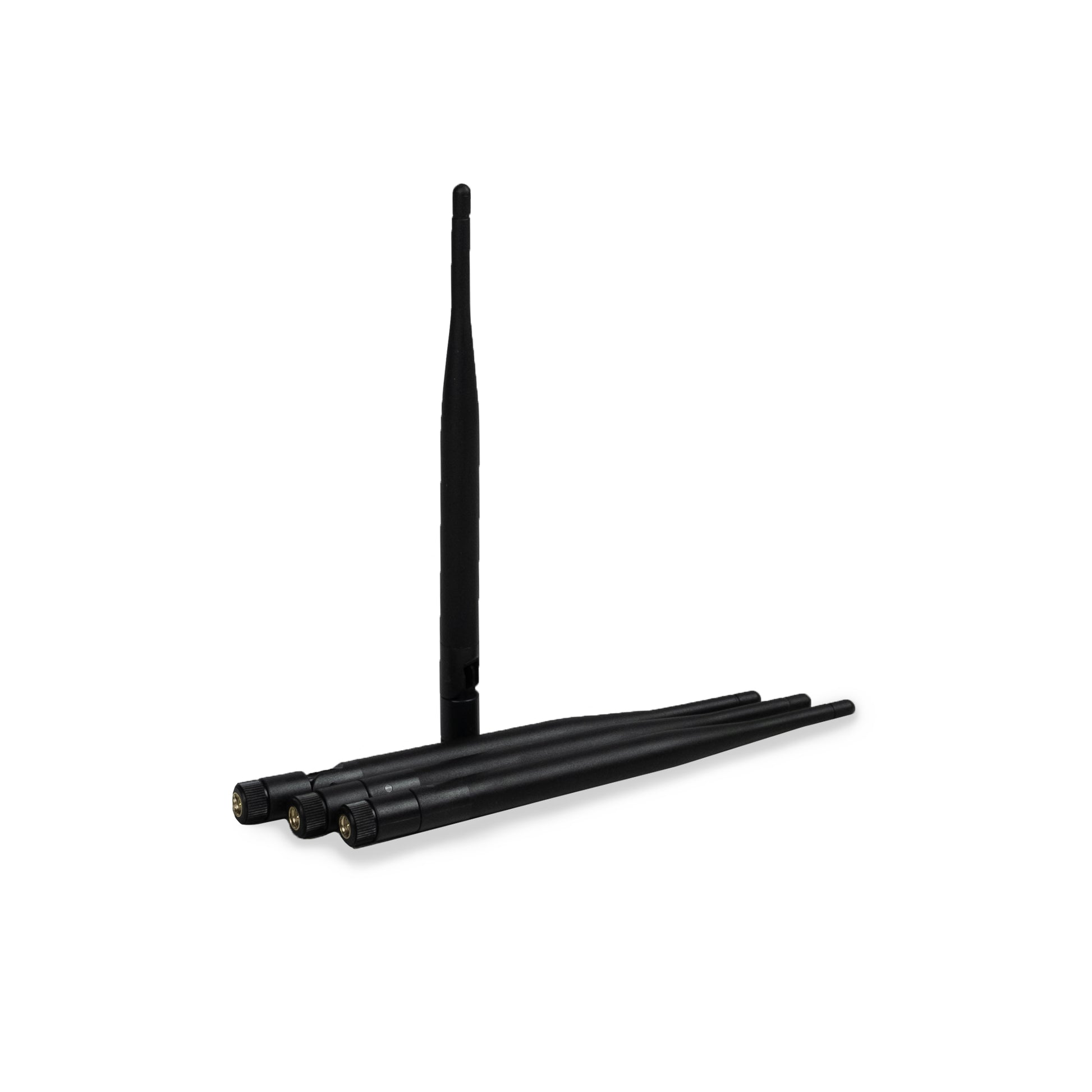

Antenna for communication | 4 pcs | 5 pcs | 6 pcs |

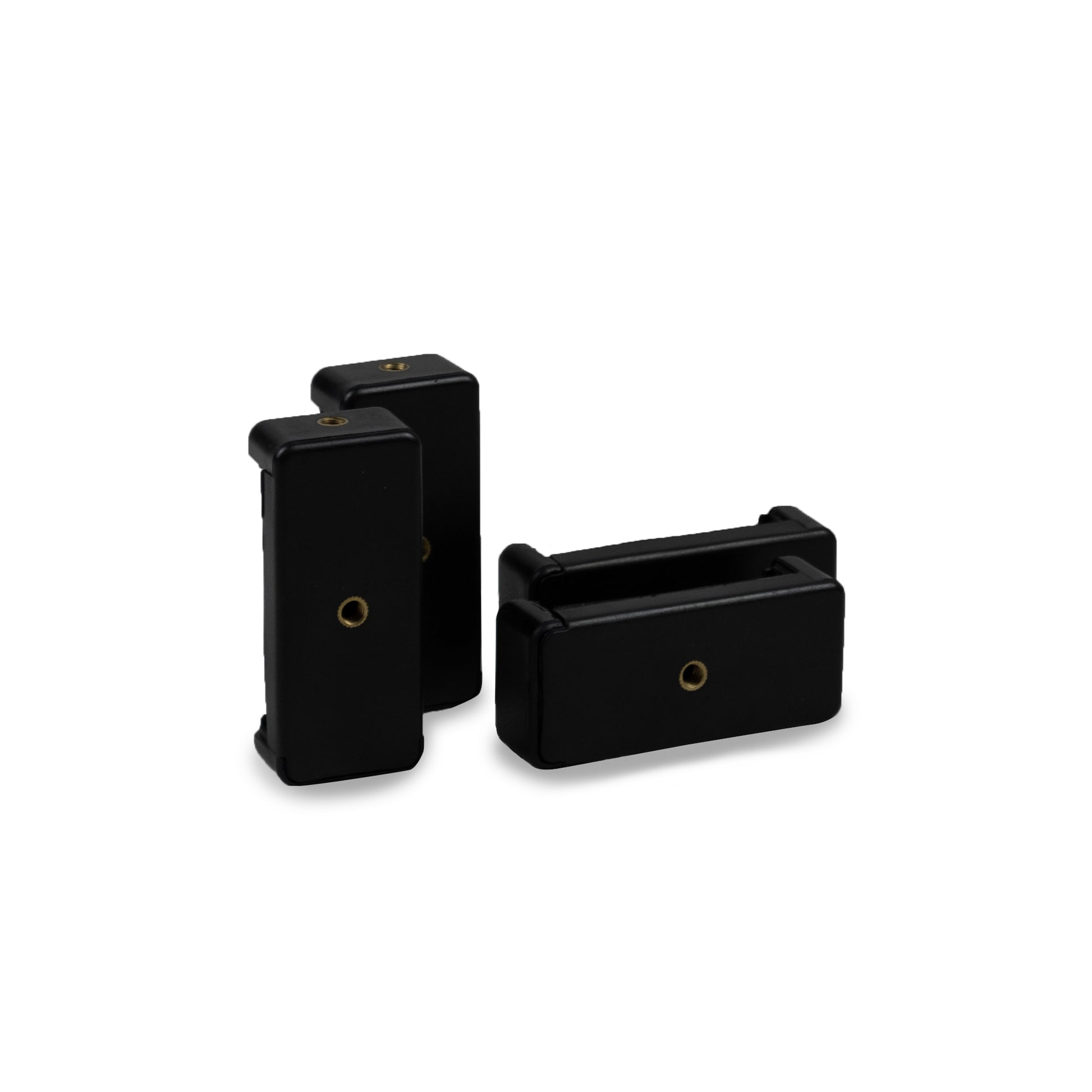

Holding devices for mirrors and screens | 4 pcs | 5 pcs | 6 pcs |
Small bags for power banks | 4 pcs | 5 pcs | 6 pcs |

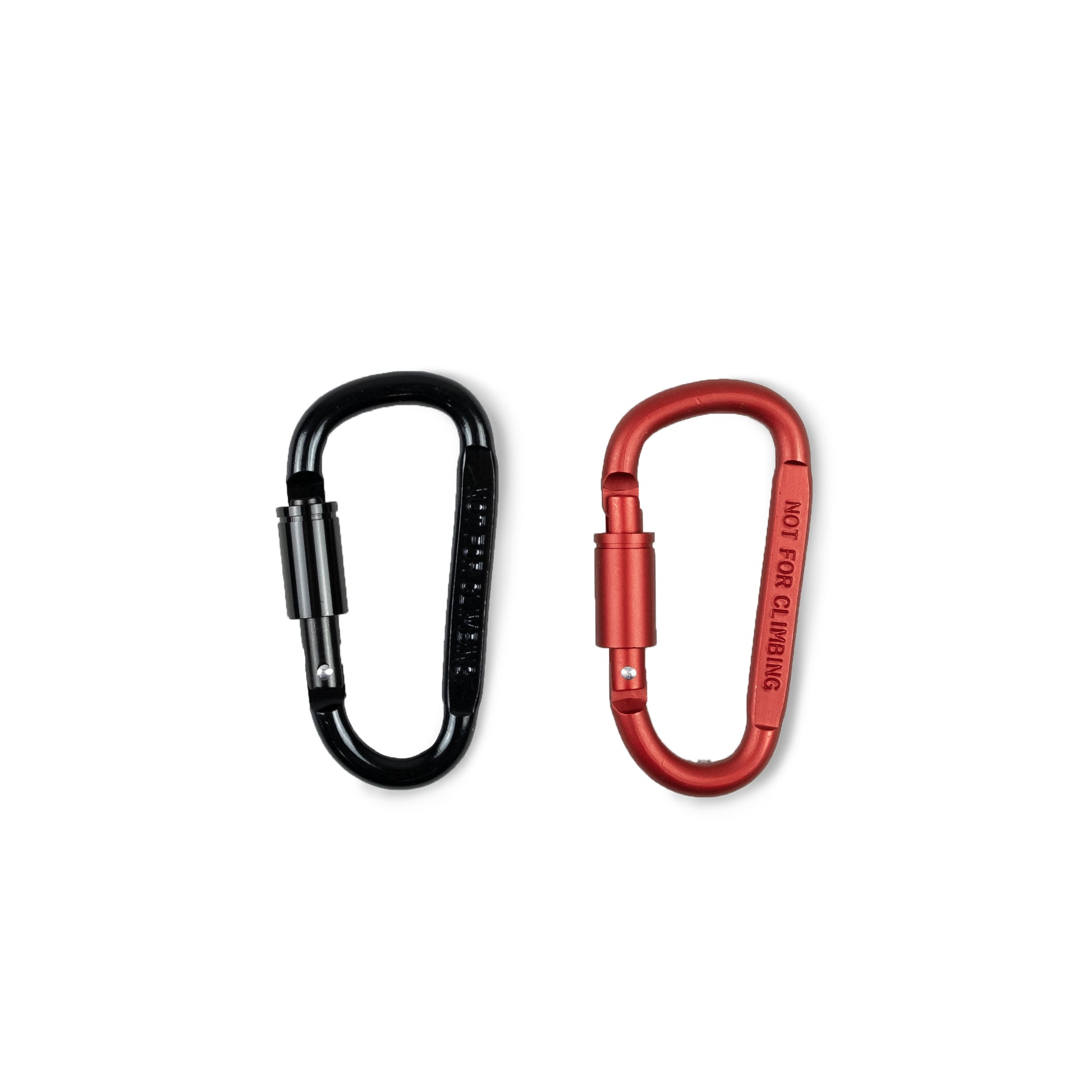

Carabiners (for securing the power bank bags) | 4 pcs | 5 pcs | 6 pcs |

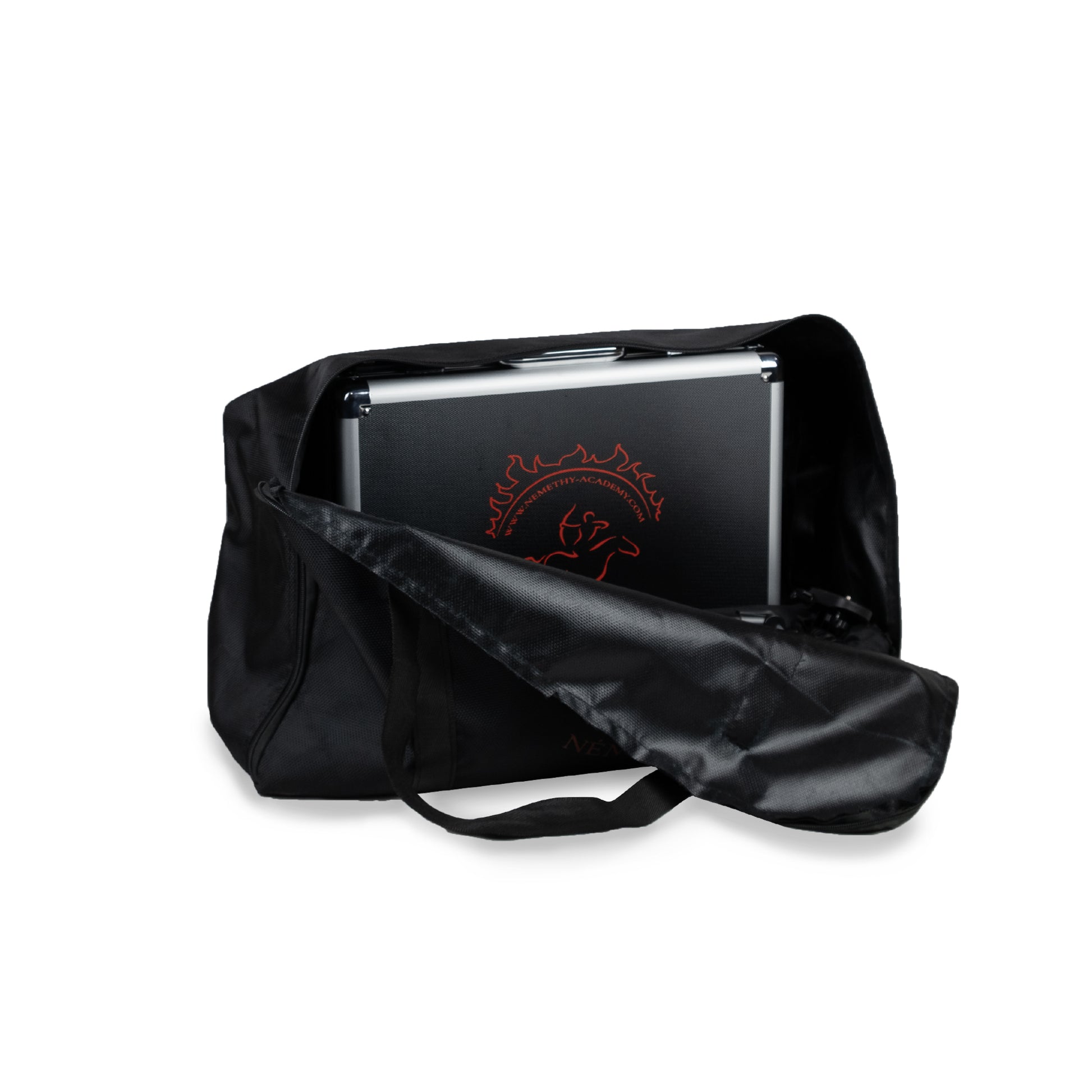

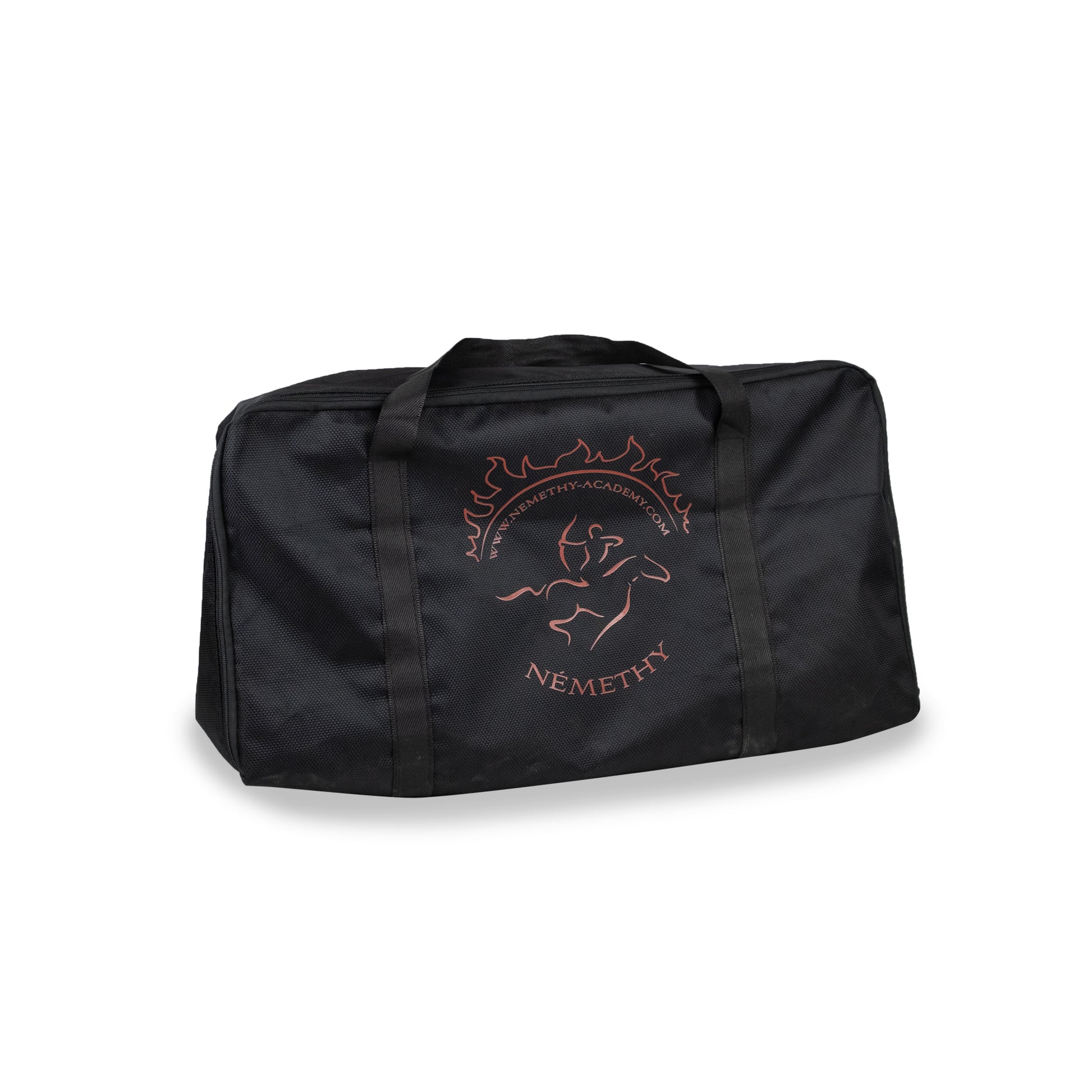

Shoulder bag: | ✓ | ✓ | ✓ |
Tripod | 6 pcs | 8 pcs | 9 pcs |

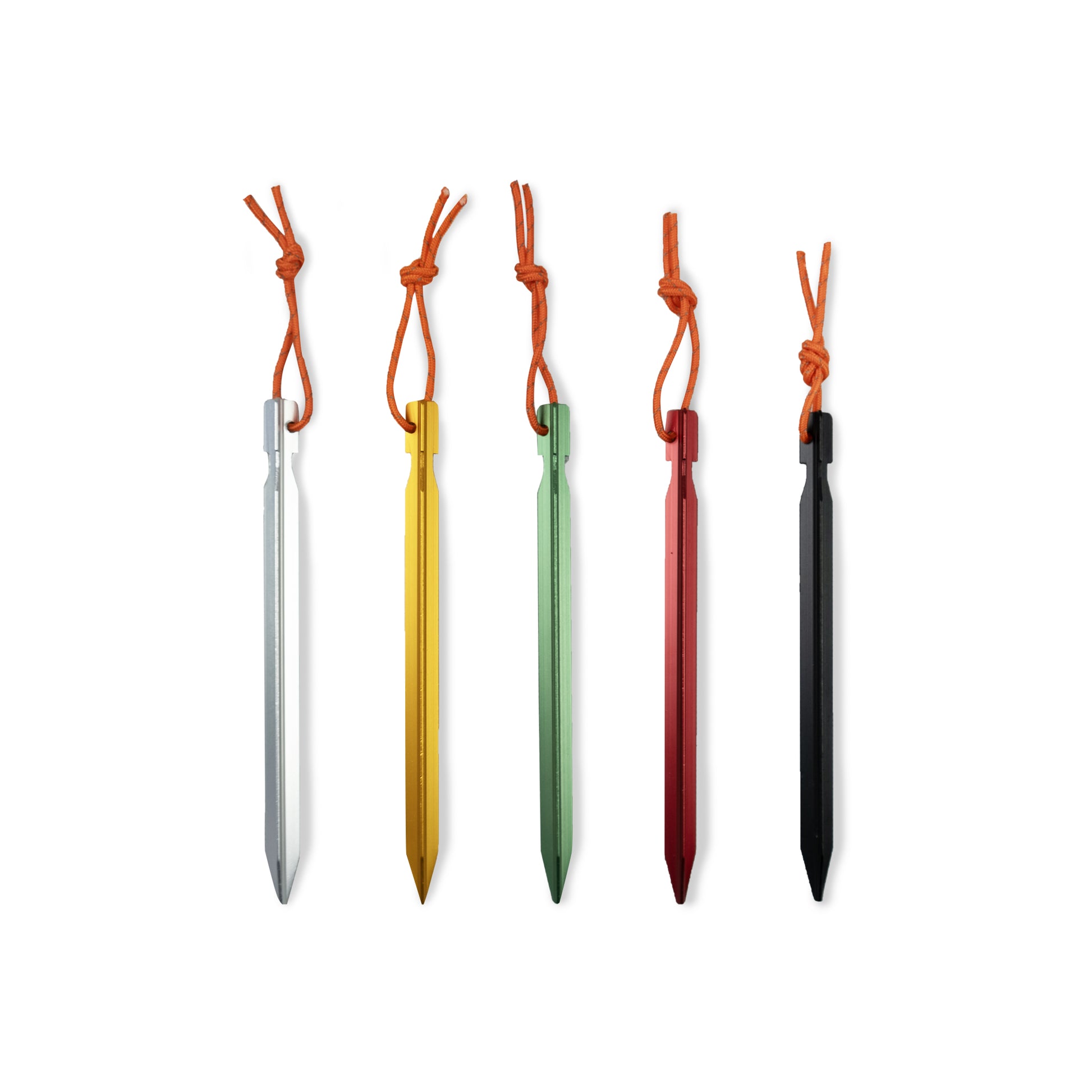

Ground peg | 18 pcs | 24 pcs | 27 pcs |
PowerBank: | ✕ | ✕ | ✕ |
Additional Information: | |||
Wireless communication | ✓ | ✓ | ✓ |
Built-in Battery | ✕ | ✕ | ✕ |
Wireless communication range | 200m | 200m | 200m |
Production time | 1-3 months | 1-3 months | 1-3 months |
Warranty | 1 year | 1 year | 1 year |
Weight | 8,9 kg | 10,73 kg | 13,65 kg |
Extra Accessories:

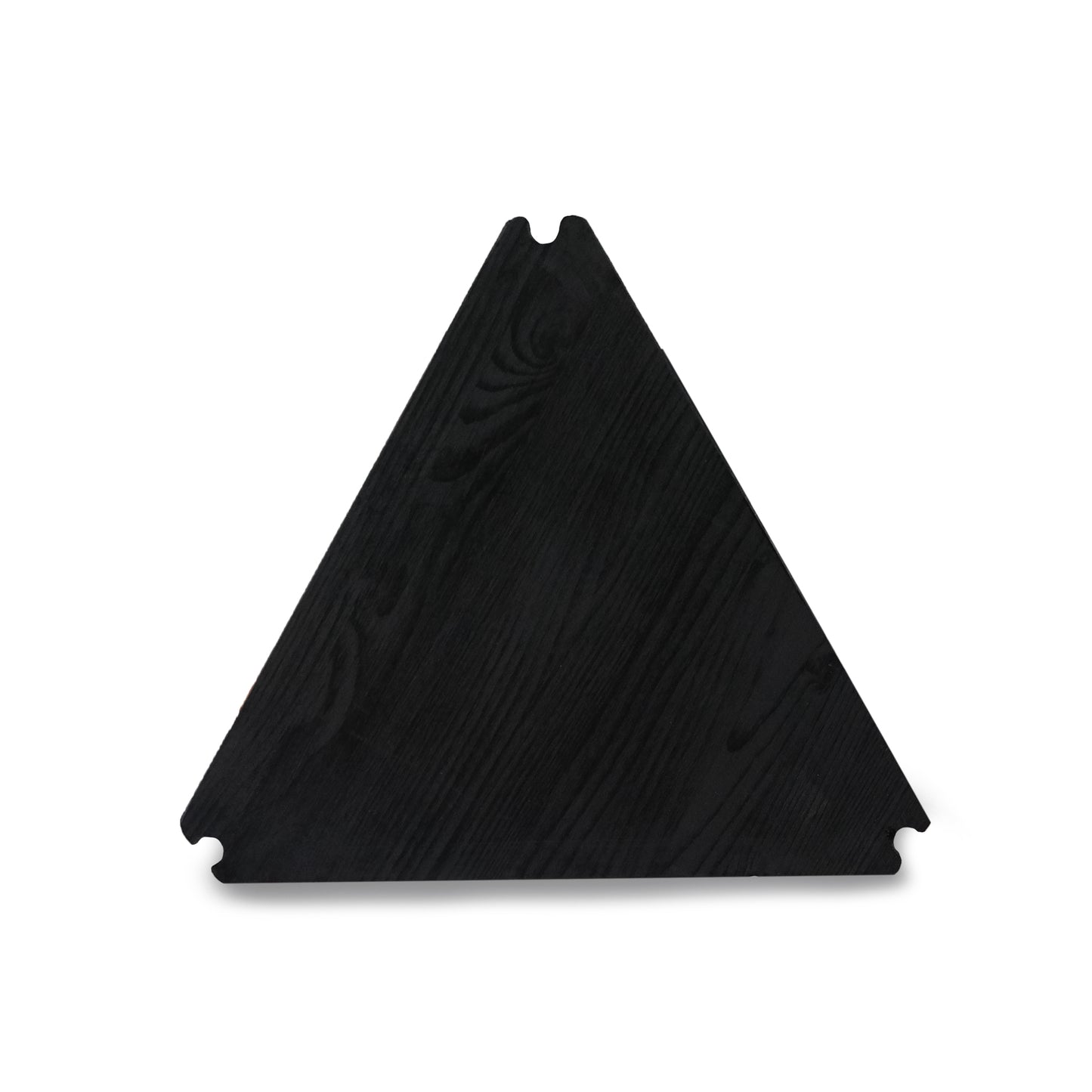

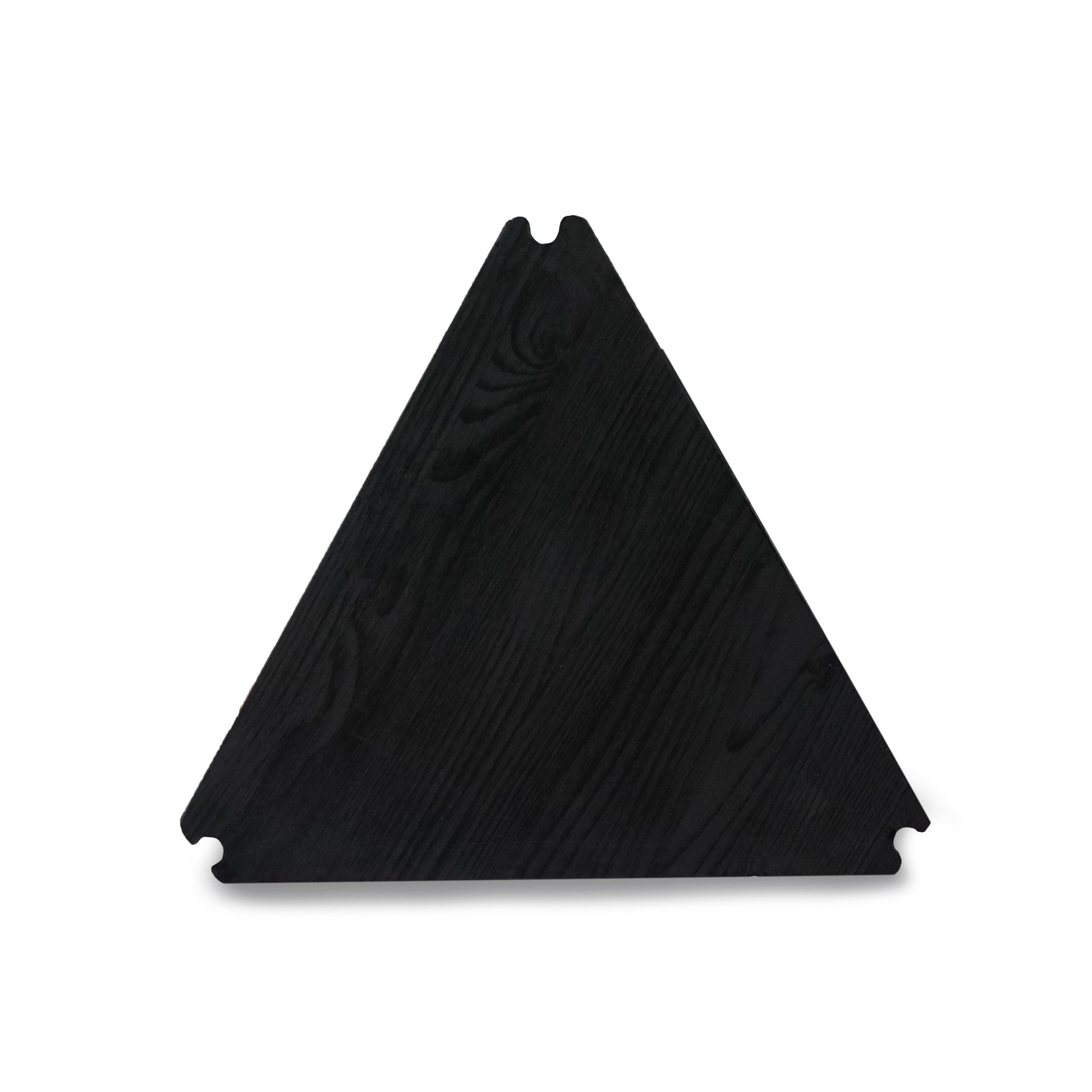

Upon request, wooden triangular tripod fasteners can be ordered. These should be placed between the legs of the tripod to make the attachment more stable.
All systems can be ordered with screens of different sizes:
small screen (23x7 cm)
large screen (60x16 cm)
custom-sized screen
It is also possible to order the system with a touchscreen admin system that controls lamps with sound. The judge can send a signal to the lamp system, giving the rider the signal to start with light and sound. When the rider passes the gate on the other side, it sends a signal not to start. This is for safety reasons when we have horseback archers on both the left and right sides simultaneously.
Please ask if you would like more information about it and the prices.

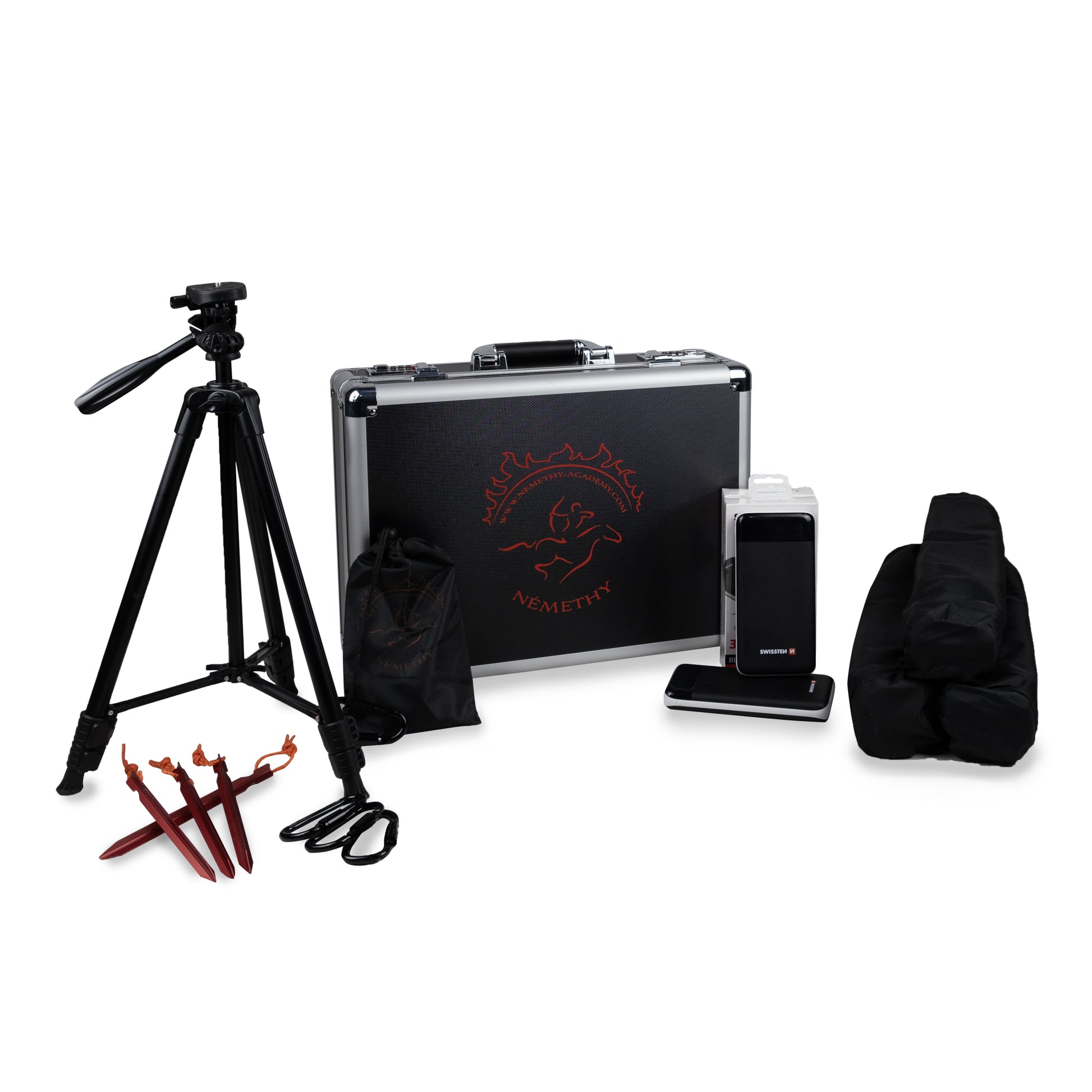

Note: The PowerBank in the images is for illustrative purposes only. We do not provide a PowerBank with the product. Due to warranty issues, it is more advantageous for everyone to obtain this in their own region. Of course, the device can be used with other PowerBanks, but this is the PowerBank we usually recommend: Powerbank Swissten Black Core 30000 mAh
